Ultra-precise with advanced user and compliance features
The Kern ABP series is the premium choice for high-performance analytical weighing, offering cutting-edge single-cell technology and advanced compliance features. With automatic internal calibration and ultra-fast stabilization (as low as 2 seconds), the ABP ensures reliable results in regulated environments such as pharmaceutical labs, R&D, and quality assurance.
The ABP also includes intelligent recipe and dosage modes, user management for up to 10 operators, built-in minimum weight warnings, FDA 21 CFR Part 11 support, and an Erlenmeyer flask holder (ABP 200-5M only). With RS-232 and dual USB ports, this series delivers robust connectivity and documentation options for GLP/GMP workflows.
Key Features
- Internal Calibration: Fully automatic adjustment on time or temperature change
- Weighing Cell: Single-piece monolithic cell with exceptional corner load performance

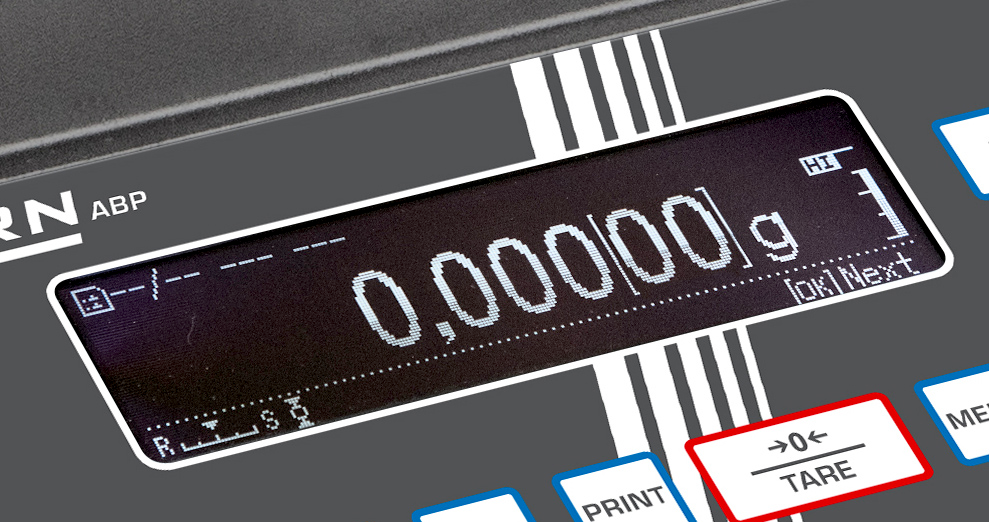

- Display: High-contrast OLED (12 mm digit height)
- User Management: 10 users with password, barcode login, guest access, and role permissions
- Compliance: GLP/GMP protocol printing, supports FDA 21 CFR Part 11

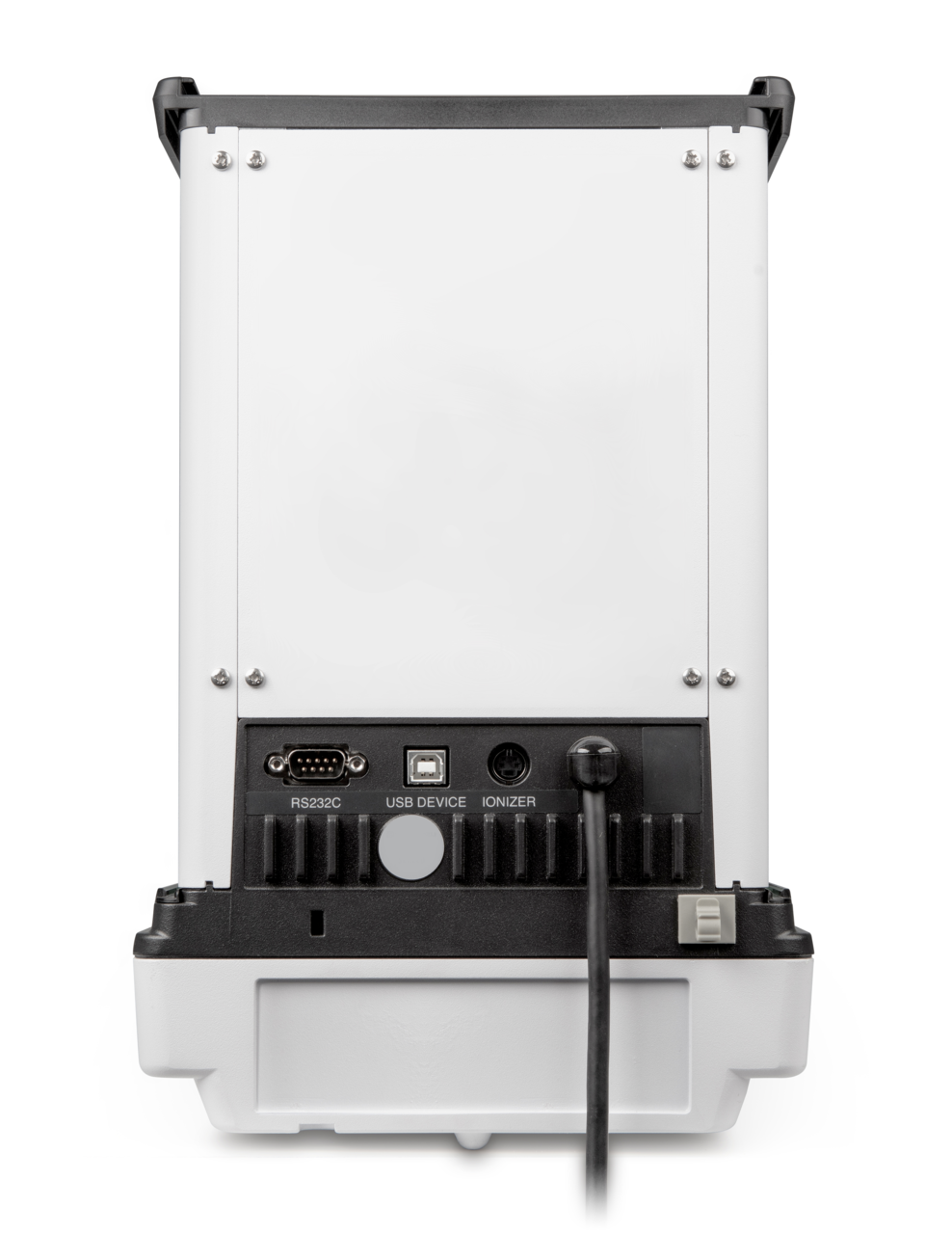

- Connectivity: RS-232, USB Device, USB Host (for keyboard or barcode scanner)
- Minimum Sample Weight: Manual or auto-set with warning below threshold
- Accessories Included: Draft shield, multi-function weighing plate, protective cover
KERN ABP Model Comparison
| Model | Capacity (g) | Readability (mg) | Verification Value (mg) | Minimum Load (mg) | Reproducibility (mg) | Linearity (mg) | Verification Ready |
|---|---|---|---|---|---|---|---|
| ABP 100-5M | 135 | 0.01 | 1 | 1 | 0.05 | ±0.1 | Yes |
| ABP 200-5M | 220 | 0.01 | 1 | 1 | 0.015 | ±0.1 | Yes |
| ABP 100-4M | 120 | 0.1 | 1 | 10 | 0.1 | ±0.2 | Yes |
| ABP 200-4M | 220 | 0.1 | 1 | 10 | 0.1 | ±0.2 | Yes |
| ABP 300-4M | 320 | 0.1 | 1 | 10 | 0.15 | ±0.3 | Yes |
| ABP 100-5DM | 52 | 120 | 0.01 | 0.1 | 1 | 1 | 1 | 0.02 | 0.1 | ±0.05 | 0.2 | Yes |
| ABP 200-5DM | 102 | 220 | 0.01 | 0.1 | 1 | 1 | 1 | 0.05 | 0.1 | ±0.1 | 0.2 | Yes |
Additional Information
- Calibration: Fully automatic internal calibration triggered by time or temperature changes
- Verification: All models with “M” suffix are legal-for-trade; must be verified before use
- Weighing Pan: Ø 91 mm stainless steel with multi-function holder (included)
- Draft Shield Dimensions: 168×172×223 mm (W×D×H)
- Stabilization Time: ~2 sec for 0.1 mg models; ~8 sec for 0.01 mg models
- Accessories: Ionizer, density kits, calibration certificates, USB barcode scanner, minimum weight detection
