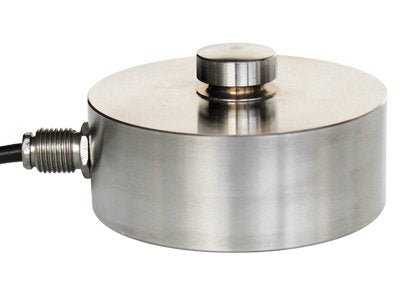

Laumas CBL Compression Load Cell

Laumas Laumas CBL Compression Load Cell

£286.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

250 kg, 500 kg, 1 t, 2.5 t, 5 t, 7.5 t, 10 t, 12.5 t, 15 t, 30 t, 50 t, 100 t

Accuracy

C2/C3 OIML R60; combined error ≤ ±0.03% (0.02% C3)

Material

17-4 PH stainless steel

Cable Length

5 m (250 kg to 10 t); 10 m (12.5 t to 100 t)

Output Signal

2 mV/V ±0.1%

IP Rating

IP68

Approvals

OIML R60, ATEX, IECEx, EAC, EAC Ex, PAC, CPA, CE, UKCA, Ex NEPSI

CE, UKCA, OIML R60 C2/C3

Optional Certifications

Learn more

Applications

Tank Weighing

Provides dependable tank weighing performance for silos, hoppers, mixers and process vessels.

Hopper Weighing

Provides accurate hopper weighing for ingredient handling, batching and process control applications.

Mixer Weighing

Suitable for mixer weighing applications where accurate ingredient measurement affects product quality.

Industrial Mixing Systems

Provides accurate weight measurement for industrial mixing systems where ingredient control is essential.

Features

Heavy-Duty Force Monitoring

Designed for suspended load monitoring and force measurement applications requiring robust construction.

Stainless Steel Construction

Corrosion-resistant stainless steel construction supports long-term operation in demanding conditions.

Heavy Industrial Applications

Designed for heavy industrial weighing systems handling large static loads.

Tank & Hopper Weighing

Suitable for tanks, silos, mixers and heavy-capacity process weighing installations.

FAQs

What weighing applications is the CBL load cell designed for?

The CBL load cell is designed for tank weighing, silo weighing, hopper weighing and bulk material handling applications.

Why is the CBL load cell suitable for bulk material storage applications?

The CBL offers high-capacity weighing performance and robust construction suitable for bulk storage vessels and silos.

Can the CBL load cell be used for inventory monitoring?

Yes, the CBL is frequently used for inventory monitoring in silos, tanks, hoppers and bulk material storage systems.

Can the CBL load cell be used in process weighing systems?

Yes, the CBL is widely used in process weighing systems requiring accurate inventory monitoring and production control.

Need more help? Contact our sales team.
