Low Profile Compression Load Cell – 1,000 kg to 30,000 kg Capacity

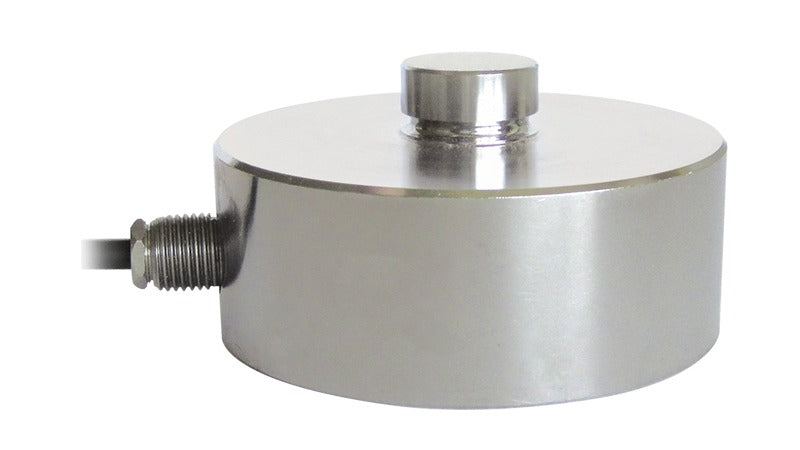

The Laumas CX Series is a compact low-profile compression load cell made from AISI 420 stainless steel for heavy-duty industrial applications. Designed to withstand harsh environments, it features IP68 ingress protection, a combined error of ≤ ±0.05%, and a stable 2 mV/V output. With a wide capacity range from 1,000 kg to 30,000 kg, the CX is ideal for tank weighing, silos, hoppers, and process vessels. Compatible with various mounting kits for safe, precise installation.


Key Features

  • Wide Capacity Range: Models from 1,000 kg to 30,000 kg for flexible application use
  • IP68 Rating: Dust-tight and protected against continuous submersion in water
  • High Accuracy: Combined error ≤ ±0.05% with 2.0 mV/V ±0.4% output signal
  • Rugged Material: Constructed from corrosion-resistant AISI 420 stainless steel
  • Temperature Performance: Compensated from -10 °C to +50 °C; operational -30 °C to +70 °C
  • Safe Overload: 150% of rated capacity; 300% ultimate overload
  • Mounting Kits Available: Compatible with V10000, V5000, Z10000, Z15000 kits
  • Cable: 10 m length, Ø5 mm, 6-core × 0.25 mm²
  • Certifications: CE marked, UKCA marked, compliant with Eurasian Customs Union

Available Models

Model Capacity (kg)
CX1000L 1,000 kg
CX2500L 2,500 kg
CX5000L 5,000 kg
CX7500L 7,500 kg
CX10000L 10,000 kg
CX15000L 15,000 kg
CX30000L 30,000 kg

Certifications on Request

  • ATEX II 1GD – suitable for use in explosive atmospheres (zones 0/1/2/21/22)
  • IECEx – global standard for explosive area compliance
  • Declaration of IP69K Conformity – for high-pressure washdown use
  • LAT Accredia Calibration – ISO 376 / ASTM E74 for capacities from 1,000 kg to 10,000 kg
  • Calibration Report – available on request
  • EAC Ex – certified for use in the Eurasian Economic Zone
