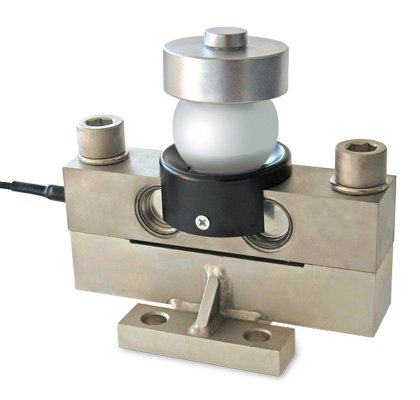

Stainless Steel Double Shear Beam Load Cell – 25,000 kg Capacity

The Laumas DTL Series is a high-capacity double shear beam load cell made from AISI 4340 nickel-plated steel, designed for demanding industrial weighing applications. With a maximum rated capacity of 25,000 kg, IP68 environmental protection, and a combined error ≤ ±0.02%, the DTL is engineered for high precision in harsh environments such as silos, hoppers, tanks, and heavy-duty platforms. The load cell supports a wide operating temperature range from -35 °C to +65 °C and offers optional ATEX and IECEx certifications for use in hazardous areas.

Key Features

• High Capacity: Nominal load of 25,000 kg – ideal for heavy-duty weighing systems
• Material: AISI 4340 nickel-plated alloy steel for enhanced corrosion resistance
• Accuracy Class: C3 (OIML R60 certified) with ≤ ±0.02% combined error
• Environmental Protection: IP68 – fully water and dust resistant
• Output Signal: 2 mV/V ±0.1% for precise analogue signal response
• Wide Operating Range: -35 °C to +65 °C with temperature-compensated accuracy
• Safe Overload: Up to 150% of rated capacity
• Mounting Kit: Compatible with VCDKDTL kit for secure installation
• Cable: 20 m length, 4-core, Ø6 mm, 4 × 0.22 mm² cross-section
• UKCA, CE, and EAC Marked: Legal for trade and compliant across UK and international markets

Available Model

Certifications on Request

• ATEX II 1G 2D – certified for explosive gas and dust atmospheres (zones 0/1/2/21/22)
• IECEx – international certification for hazardous locations
• FM/Har.Ex – US and Canadian certification for explosive areas
• EAC Ex – for explosive environments in the Eurasian Economic Union
• NEPSI – compliant with Chinese market regulations
• OIML R60 C3 – legal-for-trade certified accuracy
