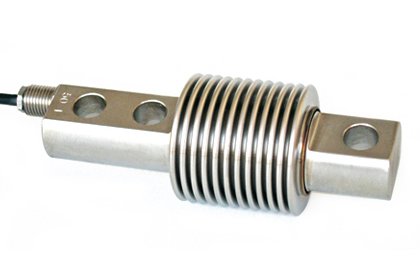

Laumas FCAL Bending Beam Load Cell

Laumas FCAL Bending Beam Load Cell Overview

The Laumas FCAL Bending Beam Load Cell is a stainless steel industrial load cell designed for accurate weighing in tanks, hoppers, dosing systems and compact process equipment. Available in capacities from 50kg to 300kg, the FCAL provides reliable weight measurement for industrial automation and process control applications.

Manufactured from AISI 420 stainless steel and protected to IP68, the FCAL is suitable for demanding environments where durability and measurement accuracy are important. Its compact design makes it easy to integrate into OEM machinery, weighing assemblies and industrial process systems.

Model: FCAL50 - 50 Kg

Calibration Certificate: No

Quantity:

£264.00

View Technical Data Sheet (PDF)

Laumas Laumas FCAL Bending Beam Load Cell

£264.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

50 kg, 75 kg, 150 kg, 300 kg

Accuracy

C3 (OIML R60), combined error ≤±0.017%

Material

AISI 420 stainless steel

Cable Length

3 m

Output Signal

2.0 mV/V ±0.1%

IP Rating

IP68

Approvals

OIML R60 C3, CE, UKCA; ATEX, IECEx, EAC Ex, Ex NEPSI on request

CE, UKCA, OIML R60 C3

Optional Certifications

Learn more

Applications

Tank Weighing

Ideal for tank weighing applications requiring reliable inventory monitoring, batching control and process management.

Hopper Weighing

Ideal for hopper weighing applications where accurate ingredient control and process consistency are essential.

Batching Systems

Supports batching systems requiring precise ingredient control and repeatable production processes.

OEM Weighing Equipment

Designed for OEM weighing equipment manufacturers requiring accurate load measurement and straightforward integration.

Features

Stainless Steel Construction

Manufactured from stainless steel for excellent corrosion resistance and dependable performance in industrial weighing applications.

IP68 Protection

IP68-rated sealing protects internal components from dust and moisture ingress in demanding industrial environments.

Industrial Weighing Reliability

Provides dependable performance in demanding production, storage and process weighing applications.

Wide Application Flexibility

Versatile design supports weighing, dosing, batching and industrial process control applications.

FAQs

Is the FCAL load cell suitable for tank and hopper weighing?

Yes, the FCAL load cell is widely used in tank weighing, hopper weighing, batching systems and process control applications requiring accurate weight measurement.

What material is the FCAL load cell manufactured from?

The FCAL is manufactured from stainless steel, providing excellent corrosion resistance and long-term durability in industrial environments.

What environmental protection rating does the FCAL load cell provide?

The FCAL provides IP68 environmental protection to support reliable weighing performance in challenging industrial applications.

Does the FCAL load cell require specialist weighing electronics?

No, the FCAL uses a standard strain gauge output and is compatible with most industrial weighing indicators and transmitters.
