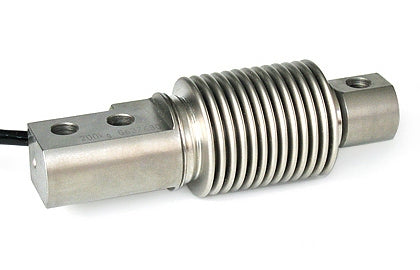

Laumas FCOL Bending Beam Load Cell

Q: What applications is the FCOL load cell commonly used in?

The FCOL load cell is commonly used in tanks, hoppers, conveyors, process equipment and industrial weighing systems requiring reliable performance.

Q: Can the FCOL load cell be integrated into OEM weighing systems?

Yes, the FCOL is commonly integrated into OEM weighing systems, process equipment and industrial automation projects.

Q: What environmental protection rating does the FCOL load cell offer?

The FCOL offers IP68 protection to help maintain reliable weighing performance in industrial process environments.

Q: What weighing indicators are compatible with the FCOL load cell?

The FCOL is compatible with a wide range of load cell indicators, transmitters and industrial weighing electronics.

Laumas FCOL Bending Beam Load Cell Overview

The Laumas FCOL Bending Beam Load Cell is a stainless steel industrial weighing sensor designed for accurate load measurement in tanks, hoppers, conveyors and OEM weighing equipment. Available in capacities from 20kg to 500kg, it provides a versatile solution for a wide range of process weighing applications.

Its robust construction and IP68 environmental protection support reliable operation in demanding industrial environments. The FCOL is suitable for new weighing system installations, machinery integration projects and load cell replacement applications where dependable measurement performance is required.

Model: FCOL20 - 20 Kg

Calibration Certificate: No

Quantity:

£204.00

View Technical Data Sheet (PDF)

Laumas Laumas FCOL Bending Beam Load Cell

£204.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

20 kg, 50 kg, 100 kg, 200 kg, 350 kg, 500 kg

Accuracy

C3/C4; <±0.02% (0.017% C4)

Material

17-4PH stainless steel

Cable Length

3 m

Output Signal

2 mV/V ±1%

IP Rating

IP68

Approvals

OIML R60, ATEX, IECEx, EAC, EAC Ex, NTEP, CE, UKCA, FM HazLoc, Ex NEPSI

CE, UKCA, OIML R60 C3/C4

Optional Certifications

Learn more

Applications

Tank Weighing

Provides accurate tank weighing for process vessels, ingredient storage tanks and industrial batching systems.

Hopper Weighing

Provides accurate hopper weighing for batching systems, ingredient handling and automated production processes.

Conveyor Weighing

Suitable for conveyor weighing applications used to monitor material throughput and production efficiency.

OEM Weighing Equipment

Integrates easily into OEM weighing equipment used in production, packaging and process industries.

Features

Wide Capacity Range

Suitable for tanks, hoppers and process equipment requiring accurate weight measurement across a wide capacity range.

IP68 Environmental Protection

Sealed construction protects the load cell from moisture, dust and contamination in industrial process environments.

Compact Installation

Compact dimensions simplify installation within tanks, hoppers and industrial weighing assemblies.

OEM Equipment Integration

Easily integrated into new equipment designs and weighing system upgrades.

FAQs

What applications is the FCOL load cell commonly used in?

The FCOL load cell is commonly used in tanks, hoppers, conveyors, process equipment and industrial weighing systems requiring reliable performance.

Can the FCOL load cell be integrated into OEM weighing systems?

Yes, the FCOL is commonly integrated into OEM weighing systems, process equipment and industrial automation projects.

What environmental protection rating does the FCOL load cell offer?

The FCOL offers IP68 protection to help maintain reliable weighing performance in industrial process environments.

What weighing indicators are compatible with the FCOL load cell?
