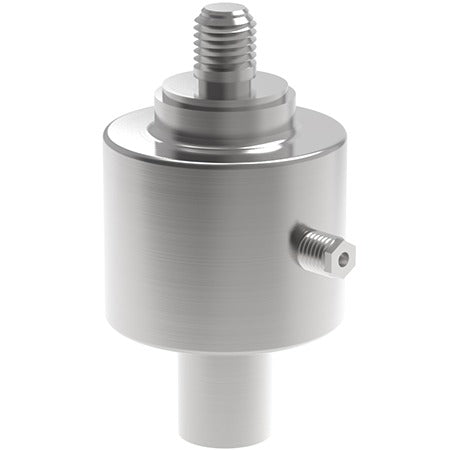

Laumas FLC Compression Load Cell
27000
Laumas FLC Compression Load Cell
27000

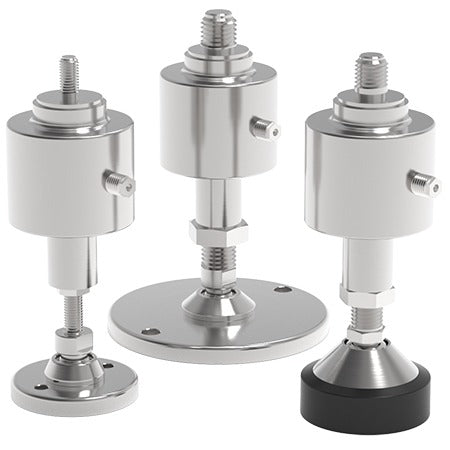

Compression Load Cell for Adjustable Feet – 75 kg to 10,000 kg Capacity
The Laumas FLC Series is a compact compression load cell for use with adjustable machine feet in industrial and hygienic weighing applications. Constructed from 17-4 PH stainless steel and offering IP67 protection, the FLC ensures long-term reliability in washdown and process environments. Designed to work with STR and SBR foot series, it features a combined error ≤ ±0.07% and up to 10,000 kg capacity, ideal for tanks, platforms, and automation equipment.
Key Features
- Precision Accuracy: Combined error ≤ ±0.07% with stable 2.0 mV/V signal output
- Hygienic Construction: Built from corrosion-resistant 17-4 PH stainless steel
- Adjustable Height: Screw thread design supports up to 10 mm of vertical adjustment
- Ingress Protection: IP67 rated – dustproof and protected against powerful water jets
- Wide Capacity Range: From 75 kg to 10,000 kg for broad application versatility
- Temperature Stability: Compensated from -10 °C to +40 °C; usable -20 °C to +60 °C
- Safe Overload: 120% of rated load; ultimate overload 300%
- Cable: 5 m standard (10 m for 10,000 kg model); Ø5 mm with 6 × 0.20 mm² cores
- Certifications: CE, UKCA, and optional ATEX II 3GD (zone 2/22)
Available Models
| Model | Capacity (kg) | Thread |
|---|---|---|
| FLC75 | 75 kg | M12×1.75 |
| FLC150 | 150 kg | M12×1.75 |
| FLC300 | 300 kg | M12×1.75 |
| FLC500 | 500 kg | M12×1.75 |
| FLC1000 | 1,000 kg | M12×1.75 |
| FLC2000 | 2,000 kg | M20×2.5 |
| FLC5000 | 5,000 kg | M24×3 |
| FLC10000 | 10,000 kg | M24×3 |
Certifications on Request
- ATEX II 3GD – certified for explosive dust and gas zones (zone 2/22)
- LAT Accredia Calibration – ISO 376 / ASTM E74 from 1,000 kg to 10,000 kg
- Calibration Report – available upon request
