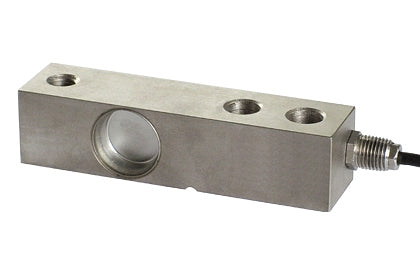

Laumas FTK Shear Beam Load Cell

Laumas Laumas FTK Shear Beam Load Cell

£143.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

75, 150, 300, 500, 1,000, 2,000, 3,000, 5,000 kg

Accuracy

C3 (OIML R60); ≤±0.02% combined error

Material

AISI 4340 nickel-plated steel

Cable Length

6 m

Output Signal

2 mV/V ±0.1%

IP Rating

IP67 (75–300 kg), IP68 (500–5,000 kg)

Approvals

OIML R60 C3, CE, UKCA, EAC; ATEX, IECEx, EAC Ex and Ex NEPSI on request

CE, UKCA, OIML R60 C3

Optional Certifications

Learn more

Applications

Tank Weighing

Supports accurate tank weighing for batching systems, ingredient handling and industrial process control.

Hopper Weighing

Designed for hopper weighing systems used in production, batching and automated material handling.

Ingredient Batching

Designed for ingredient batching systems requiring accurate and repeatable weight measurement.

Process Automation

Provides accurate weighing data for process automation systems requiring reliable inventory and batch control.

Features

Dual Output Technology

Dual output design supports redundant weighing systems and specialised industrial applications.

Industrial Reliability

Proven performance in tank weighing, hopper weighing and industrial process control applications.

Proven Weighing Technology

Widely used in tank weighing, hopper weighing and process control installations.

Batching & Process Control

Widely used in batching systems, hopper weighing and industrial process control applications.

FAQs

What applications is the FTK load cell commonly used in?

The FTK load cell is commonly used in tank weighing, hopper weighing, batching systems and industrial process control applications.

Can the FTK load cell be used with tank weighing assemblies?

Yes, the FTK can be used with compatible mounting assemblies for tank, hopper and vessel weighing systems.

Can the FTK load cell be used in batching systems?

Yes, the FTK is widely used in batching systems where accurate ingredient measurement and process control are required.

Can the FTK load cell be used in inventory management systems?

Yes, the FTK is commonly used in inventory management systems for tanks, hoppers and process vessels.
