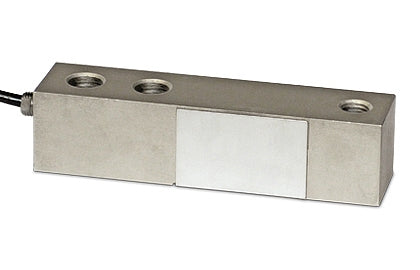

Stainless Steel Shear Beam Load Cell for 500 kg to 5,000 kg
The Laumas FTKL Series is a high-precision shear beam load cell ideal for use in platform scales, tank weighing systems, and industrial automation. Engineered from special steel and sealed to IP67, the FTKL offers excellent protection in wet or dusty environments. With options across accuracy classes C3, C4, and C5, it provides optimal measurement performance across capacities from 500 kg to 5,000 kg.
Key Features
- High Accuracy: Combined error ≤ ±0.02% (C3), ≤ ±0.017% (C4), ≤ ±0.014% (C5)
- Capacity Range: 500 kg, 1,000 kg, 1,500 kg, 2,000 kg, 3,000 kg, 5,000 kg
- Material: High-quality special steel construction
- Protection Rating: IP67 – resistant to dust and water ingress
- Output Signal: 3 mV/V ±0.1%
- Cable: 4 m (500–2000 kg), 6 m (3000–5000 kg), 4-core, Ø5 mm
- Certifications: CE, UKCA, EAC, OIML R60 C3/C4/C5
Available Models
| Model | Capacity (kg) |
|---|---|
| FTKL500 | 500 kg |
| FTKL1000 | 1,000 kg |
| FTKL1500 | 1,500 kg |
| FTKL2000 | 2,000 kg |
| FTKL3000 | 3,000 kg |
| FTKL5000 | 5,000 kg |
Certifications on Request
- ATEX II 1GD – suitable for explosive atmospheres (zone 0/1/2/21/22)
- IECEx – global hazardous area compliance
- NTEP – certified for trade use in the U.S. and Canada
Compatible Mounting Kits
- PV-PVZ, T12, TFP52000, TF500/2000 – designed for secure and stable installation
