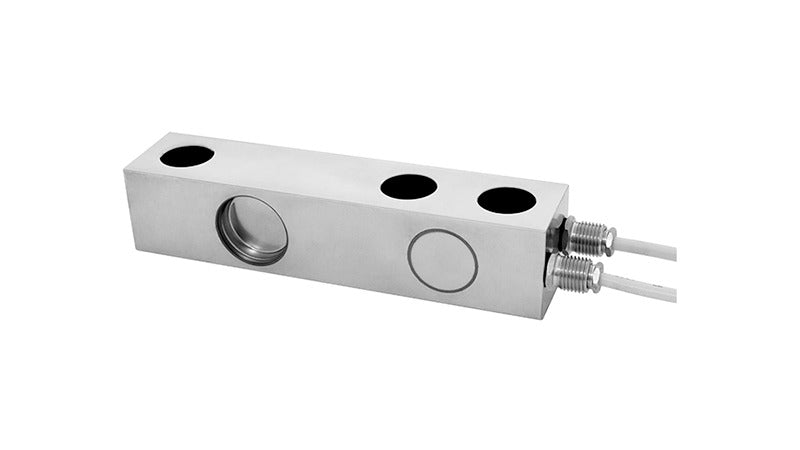

Laumas FTP DOP Shear Beam Load Cell

Laumas FTP DOP Shear Beam Load Cell Overview

The Laumas FTP DOP Shear Beam Load Cell is a stainless steel industrial weighing sensor designed for applications requiring dual output connections for redundant or safety-related weighing systems. It provides accurate load measurement for tanks, vessels, platforms and industrial process equipment.

Its robust stainless steel construction and environmental protection make it suitable for demanding industrial environments. The dual output design supports specialised weighing architectures where additional signal redundancy or separate measurement channels are required.

Model: FTP1000DOP - 1000 Kg

Calibration Certificate: No

Quantity:

£319.00

View Technical Data Sheet (PDF)

Laumas Laumas FTP DOP Shear Beam Load Cell

£319.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

1000 kg, 6000 kg

Accuracy

Combined error ≤ ±0.03%

Material

17-4 PH stainless steel

Cable Length

5 m + 5 m (1000 kg); 10 m + 10 m (6000 kg)

Output Signal

2 mV/V ±0.1%

IP Rating

IP67 (1000 kg), IP68 (6000 kg)

Approvals

ATEX, EAC, CE, UKCA

Certifications

CE, UKCA

Optional Certifications

ATEX, EAC

Learn more

Applications

Safety-Critical Weighing Systems

Provides redundant weight measurement for safety-critical systems requiring enhanced reliability and signal security.

Redundant Weighing Systems

Supports redundant weighing systems where measurement reliability and operational continuity are critical.

Industrial Safety Systems

Suitable for industrial safety systems where redundant load measurement improves operational reliability.

Critical Process Monitoring

Supports critical process monitoring applications where redundant measurement improves system reliability.

Features

High Accuracy Performance

High-accuracy performance supports demanding process weighing and industrial automation applications.

Redundant Signal Output

Dual output configuration supports redundant weighing systems and specialised control architectures.

Redundant System Support

Dual-output design supports specialised applications requiring redundant measurement signals.

Safety-Critical Applications

Suitable for applications requiring signal redundancy and enhanced system safety.

FAQs

What is the purpose of the FTP DOP dual-output load cell?

The FTP DOP provides dual output signals for redundant weighing systems and applications requiring enhanced measurement security.

Why would a weighing system require dual output signals?

Dual output signals provide measurement redundancy and are often specified for safety-critical weighing applications.

What applications benefit from the FTP DOP redundant output design?

The FTP DOP is particularly beneficial in safety-critical weighing systems where signal redundancy improves reliability.

Can the FTP DOP be used in safety-critical applications?

Yes, the FTP DOP is specifically suited to safety-critical applications where redundant signal outputs are required.
