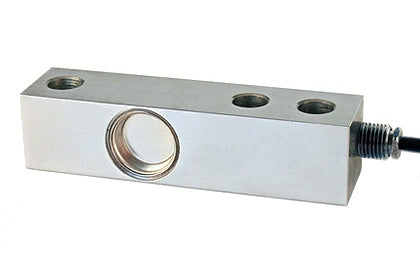

Laumas FTP Shear Beam Load Cell

Laumas Laumas FTP Shear Beam Load Cell

£176.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

75 kg, 150 kg, 300 kg, 500 kg, 750 kg, 1000 kg, 1500 kg, 2000 kg, 3000 kg, 5000 kg, 10000 kg

Accuracy

C3 OIML R60; combined error ≤ ±0.02%

Material

AISI 420 stainless steel

Cable Length

5 m (75 kg to 5000 kg); 10 m (10000 kg)

Output Signal

2 mV/V ±0.4%

IP Rating

IP67 (75 kg to 300 kg); IP68 (500 kg to 10000 kg)

Approvals

ATEX, IECEx, EAC, EAC Ex, OIML R60, UK NAWI, CPA, CE, UKCA, Ex NEPSI

CE, UKCA, OIML R60 C3

Optional Certifications

Learn more

Applications

Tank Weighing

Provides accurate tank weighing performance for industrial vessels, storage tanks and batching applications.

Vessel Weighing

Suitable for vessel weighing systems used in manufacturing, chemical processing and inventory control.

Process Vessel Weighing

Suitable for process vessel weighing systems requiring accurate inventory and production monitoring.

Storage Vessel Monitoring

Provides reliable weight information for storage vessel monitoring and inventory management systems.

Features

Industrial Weighing Performance

Designed for industrial weighing systems requiring reliable performance and accurate load measurement.

IP68 Environmental Protection

Stainless steel construction provides durability for corrosive and washdown-prone environments.

Corrosion Resistant Design

Corrosion-resistant construction provides dependable operation in demanding environments.

Tank & Hopper Weighing

Ideal for tanks, vessels and industrial process weighing systems.

FAQs

What applications is the FTP load cell designed for?

The FTP load cell is designed for tanks, hoppers, vessels, platforms and industrial process weighing applications.

Is the FTP load cell suitable for corrosive environments?

Yes, the FTP features stainless steel construction suitable for corrosive and washdown-prone environments.

What industries commonly use the FTP load cell?

The FTP is commonly used in food processing, manufacturing, chemical processing and industrial weighing applications.

What weighing electronics are compatible with the FTP load cell?

The FTP is compatible with most standard weighing indicators, transmitters and industrial weighing electronics.
