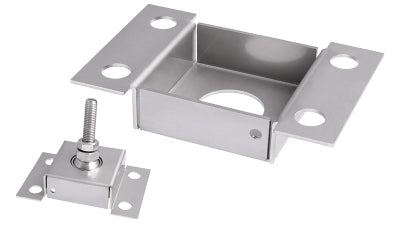

Adjustable Upper Plates

The PPV series adjustable upper plates are designed for use with single-point, bending beam, shear beam, and compression load cells up to 5000 kg. These plates provide lateral force resistance, anti-tilt protection, and are compatible with self-centering joint feet. Available in AISI 304 stainless steel or galvanized steel, the PPV range is ideal for industrial scale installations requiring plate alignment and structural flexibility.

Key Features

• Max Capacity: 2000 kg – 5000 kg
• Compatible Load Cells: Single-point, bending beam, shear beam, and compression types
• Construction: AISI 304 stainless steel or galvanized steel
• Function: Anti-tilt, lateral force compensation, joint foot compatibility
• Adjustment: Height adjustable with threaded rod
• Net Weight: 200 g – 641 g
