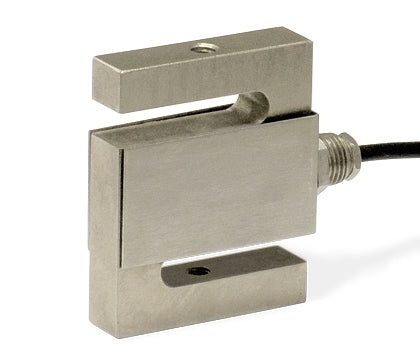

Laumas SA Tension Load Cell

Laumas SA Tension Load Cell Overview

The Laumas SA Tension Load Cell is a compact force measurement sensor designed for low-capacity tension and compression applications. It is suitable for machinery, automation equipment, test systems and industrial weighing projects where accurate force monitoring is required.

Its compact construction and bidirectional measurement capability provide flexibility for engineers and system builders. The SA is particularly useful in applications where space is limited but reliable force measurement remains critical to system performance.

Model: SA15 - 15 kg

Calibration Certificate: No

Quantity:

£220.00

View Technical Data Sheet (PDF)

Laumas Laumas SA Tension Load Cell

£220.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

15 kg, 30 kg, 60 kg

Accuracy

C3 (OIML R60), combined error ≤ ±0.02%

Material

AISI 4140 nickel-plated steel

Cable Length

3 m

Output Signal

2 mV/V ±10%

IP Rating

IP65

Approvals

OIML R60, ATEX, IECEx, EAC, EAC Ex, CE, UKCA, Ex NEPSI

Learn more

Applications

Industrial Force Measurement

Provides accurate force measurement for machinery testing, product development and industrial monitoring systems.

Product Testing

Suitable for product testing environments where reliable force measurement is required for validation activities.

Research & Development

Ideal for research and development applications requiring repeatable force measurement and product testing.

Equipment Validation

Supports equipment validation procedures requiring accurate and repeatable force measurement.

Features

Compact Force Monitoring

Provides accurate force measurement for machinery, automation systems and industrial monitoring equipment.

Bidirectional Measurement

Suitable for measuring both tension and compression forces within the same installation.

Compact Sensor Design

Compact sensor dimensions simplify integration into machinery and automation systems.

Test & Measurement Applications

Suitable for machinery development, product testing and industrial measurement systems.

FAQs

What is the SA load cell used for?

The SA load cell is used for tension and compression force measurement in machinery, automation equipment and industrial monitoring systems.

Can the SA load cell be used in both tension and compression applications?

Yes, the SA is designed to measure both tensile and compressive forces depending on the application requirements.

What industries commonly use the SA load cell?

The SA is commonly used in industrial automation, machinery testing, force monitoring and engineering applications.

What electronics are compatible with the SA load cell?

The SA is compatible with most force measurement indicators, load cell transmitters and industrial monitoring electronics.

Need more help? Contact our sales team.
