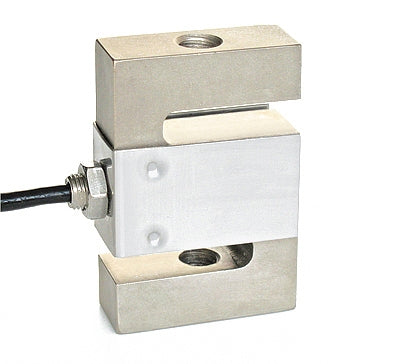

Laumas SL Tension Load Cell

Laumas SL Tension Load Cell Overview

The Laumas SL Tension Load Cell is an S-type force sensor designed for suspended weighing, batching systems, process equipment and industrial force measurement applications. Its ability to measure both tension and compression loads provides flexibility across a wide range of weighing and monitoring systems.

Constructed from nickel-plated steel and protected to IP67 standards, the SL offers dependable performance in industrial environments. It is widely used in OEM machinery, automation systems and suspended load monitoring applications where accurate force measurement is required.

Model: SL25 - 25 Kg

Calibration Certificate: No

Quantity:

£220.00

View Technical Data Sheet (PDF)

Laumas Laumas SL Tension Load Cell

£220.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Capacities

25 kg, 100 kg, 200 kg, 300 kg, 500 kg, 1,000 kg, 2,500 kg

Accuracy

C3/C4 OIML R60, SL 25 excluded; combined error ≤ ±0.02% (0.017% C4)

Material

AISI 4340 nickel-plated steel

Cable Length

5 m (25–300 kg); 10 m (500–2,500 kg)

Output Signal

2 mV/V ±0.2%

IP Rating

IP67

Approvals

OIML R60, CE, UKCA; ATEX, IECEx, EAC, EAC Ex, NTEP, FM HazLoc, Ex NEPSI on request

Learn more

Applications

Suspended Weighing

Ideal for suspended weighing applications including hanging scales, load monitoring and force measurement systems.

Hanging Scale Systems

Designed for hanging scale systems used in suspended weighing and industrial load measurement.

Crane Weighing

Designed for crane weighing applications requiring dependable force measurement and suspended load monitoring.

Lifting Equipment

Suitable for lifting equipment requiring dependable suspended load measurement and operational safety.

Features

Versatile Force Measurement

Suitable for both tension and compression applications, providing flexibility across industrial systems.

Tension & Compression Measurement

Measures pulling and pushing forces accurately for weighing, monitoring and testing applications.

Industrial Automation Applications

Suitable for automation, monitoring and industrial force measurement applications.

Suspended Weighing Applications

Ideal for suspended weighing, crane systems and industrial force monitoring applications.

FAQs

Can the SL load cell be used for both tension and compression measurement?

Yes, the SL load cell is designed to measure both tension and compression forces in suspended weighing and industrial monitoring applications.

Why is the SL load cell popular for suspended weighing applications?

The SL combines tension and compression measurement capability with a compact S-type design ideal for suspended loads.

What industries commonly use the SL load cell?

The SL is widely used in suspended weighing systems, automation projects, test equipment and industrial monitoring applications.

What electronics are compatible with the SL load cell?

The SL is compatible with standard load cell indicators, force measurement electronics and industrial monitoring systems.
