Laumas T8 Load Cell Mounting Kit
Laumas T8 Load Cell Mounting Kit

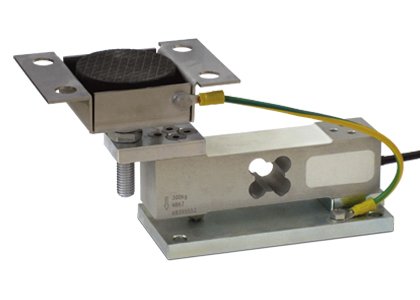

The Laumas T8 load cell mounting kit is a galvanised steel mounting assembly for compatible Laumas single-point load cells. It is used where a weighing structure needs mechanical support, controlled load introduction and restraint against unwanted movement, without over-complicating the installation.
The T8 range is specified for Laumas AZLI, AZL, AZS and AM single point load cells. Official Laumas data identifies T8AZL for AZLI load cells up to 50 kg, AZL load cells up to 100 kg and AZS load cells up to 200 kg. T8AM is specified for AM load cells up to 300 kg. The overall application range is up to 300 kg, subject to the selected model and load cell capacity.
A self-centring joint foot provides restraint against lateral forces and anti-tilt movement. This is important on small tanks, hoppers, platforms and roller systems where side loads, frame movement or imperfect support geometry may otherwise influence weighing performance or place unnecessary stress on the load cell.
Height adjustment is included to help compensate for misalignment between the support plates of the structure. During installation, this assists with load sharing across multiple supports and helps the engineer achieve a more controlled mechanical interface before calibration. GNW product information also notes a locking screw to help prevent damage during transport.
Selection Notes
- Product type: mounting kit for compatible Laumas single point load cells.
- Construction: galvanised steel mounting kit.
- Functions: self-centring joint foot, lateral force restraint, anti-tilt support and adjustable height.
- Typical structures: rollers, platforms, tanks and hoppers.
- Installation context: use in weighing systems with at least three support points, as stated in GNW product information.
Before ordering, confirm the load cell model, load cell capacity, number of supports and mechanical arrangement. Where replacing an existing kit, match the T8 variant to the installed Laumas load cell rather than selecting on capacity alone.
Learn more
Product specification
Compare model specifications.
| Model | T8AM | T8AZL |
|---|---|---|
| Use With | AZLI, AZL, AZS, AM | AZLI, AZL, AZS, AM |
| Max Static Load | 300 kg | 200 kg |
Learn more
Applications
Features
FAQs
Which load cells is the T8 mounting kit designed for?
How does the T8 mounting kit improve weighing accuracy?
What weighing applications is the T8 mounting kit suitable for?
How does the T8 mounting kit compensate for installation misalignment?
The T8 mounting kit incorporates a self-centring design that helps ensure weighing forces are applied correctly even when minor installation tolerances exist.
