Laumas W200BOX Weight Indicator Overview

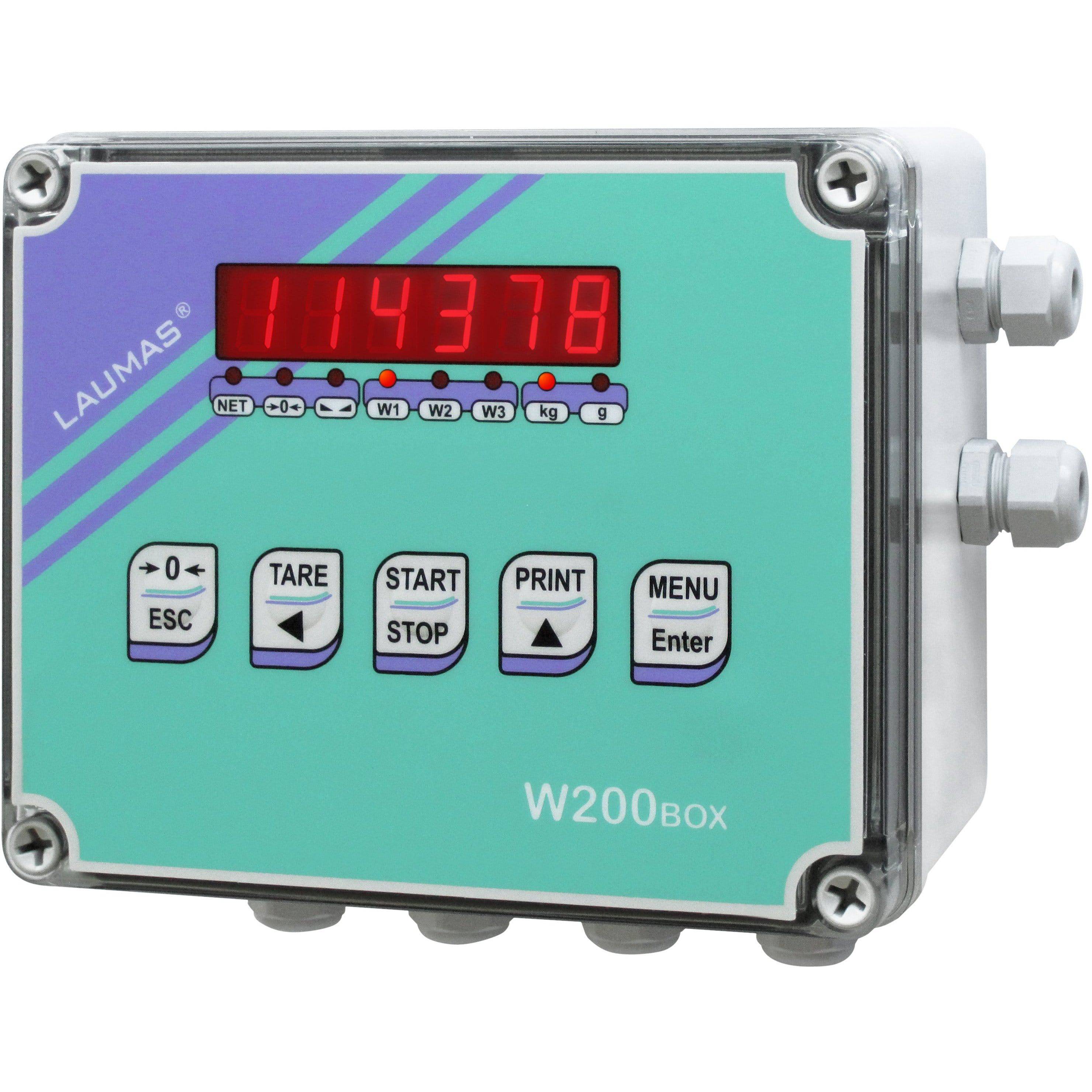

The Laumas W200BOX is a wall-mounted weight indicator designed for weighing and batching applications in industrial environments. Its IP67 enclosure provides protection for process areas where panel-mounted instruments may not be suitable.

With RS232 and RS485 communications, relay outputs, setpoint control and support for up to 99 formulas, the W200BOX is suitable for batching systems, vessel weighing, production control and industrial process weighing.

Model: W200BOX-B

Model
Sale price£364.00

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP
Program Base Load Unload 3 Products 6 Products 14 Products Multiprogram

Learn more

Applications

Wall Mounted Weighing Systems

Used in wall mounted weighing systems where protected installation is required.

Vessel Weighing Systems

Used in vessel weighing systems requiring wall mounted process control equipment.

Storage Vessel Monitoring

Supports storage vessel monitoring applications requiring reliable weight information.

Wall Mounted Process Control

Provides wall mounted process control capability for industrial facilities.

Features

Protected Wall Mount Indicator

Wall mounted indicator designed for weighing and batching applications in protected industrial locations.

IP67 Protected Enclosure

IP67 enclosure protects the indicator in demanding industrial environments.

Wall Mount Installation

Wall mounted design provides a practical installation solution for industrial sites.

Protected Industrial Operation

Designed for reliable operation within protected industrial environments.
