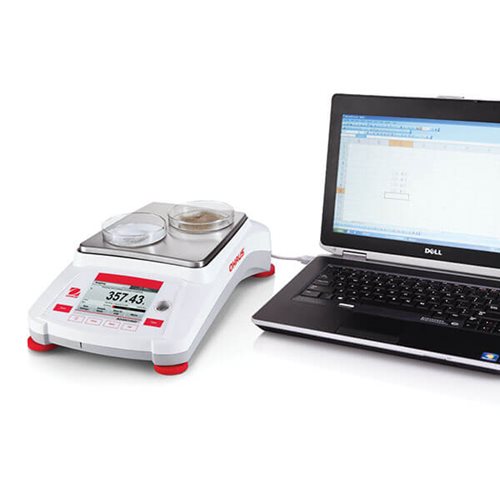

Ohaus Adventurer AX precision balance connected to a computer

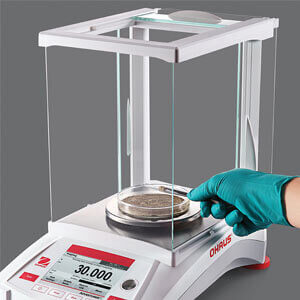

Ohaus Adventurer AX precision balance with open draught shield
Ohaus Adventurer AX precision balance in a laboratory application
Ohaus Adventurer AX precision balance with printed weighing record
Ohaus

Ohaus Adventurer AX Precision Balances

Ohaus Adventurer AX Precision Balances Overview

The Ohaus Adventurer AX Precision range provides versatile weighing for laboratory, education and industrial applications. Models cover fine-resolution measurement and larger-capacity top-loading work, allowing users to select the most appropriate combination of readability, weighing capacity and pan size.

A 4.3-inch colour touchscreen with an icon-based interface provides access to weighing, parts counting, percentage weighing, checkweighing, formulation, density determination, dynamic weighing and totalisation. Three-level user management and GLP/GMP data output support controlled procedures, while two USB connections and an RS-232 interface provide flexible data transfer.

Why Choose an Ohaus Adventurer AX Precision Balance?

Adventurer AX balances combine advanced application functions with a layout intended for straightforward daily operation. AutoCal automatic internal calibration is available on selected models, and the metal base, stainless steel pan and protective in-use cover support regular use in shared workplaces.

Versatile Precision Weighing for Routine Applications

Ohaus Adventurer AX Precision balances are suitable for sample preparation, component counting, formulation, teaching and production quality checks. They provide a practical middle ground between an essential precision balance and a more complex flagship laboratory system.

Model: AX223M

Model
Caibration Certificate: No

Caibration Certificate
Sale price£1,960.87

Learn more

Product specification

Compare model specifications.

Model AX223M AX423M AX523M AX1502M AX2202M AX4202M AX5202M AX523 AX523/E AX4202 AX4202/E AX5202 AX8201 AX8201/E AX8201M AX223 AX223/E AX423 AX423/E AX1502 AX1502/E AX2202 AX2202/E AX4201 AX4201/E AX422 AX422/E AX822 AX822/E AX2201 AX2201/E
Capacity 220 g 420 g 520 g 1520 g 2200 g 4200 g 5200 g 520 g 520 g 4200 g 4200 g 5200 g 8200 g 8200 g 8200 g 220 g 220 g 420 g 420 g 1520 g 1520 g 2200 g 2200 g 4200 g 4200 g 420 g 420 g 820 g 820 g 2200 g 2200 g
Readability 1 mg 1 mg 1 mg 10 mg 10 mg 10 mg 10 mg 1 mg 1 mg 10 mg 10 mg 10 mg 0.1 g 0.1 g 0.1 g 1 mg 1 mg 1 mg 1 mg 10 mg 10 mg 10 mg 10 mg 0.1 g 0.1 g 10 mg 10 mg 10 mg 10 mg 0.1 g 0.1 g
Readability Certified 10 mg 10 mg 10 mg 0.1 g 0.1 g 0.1 g 0.1 g - - - - - - - 1 g - - - - - - - - - - - - - - - -
Repeatability 0.001 g 0.001 g 0.001 g 0.01 g 0.01 g 0.01 g 0.01 g 0.001 g 0.001 g 0.01 g 0.01 g 0.01 g 0.1 g 0.1 g 0.1 g 0.001 g 0.001 g 0.001 g 0.001 g 0.01 g 0.01 g 0.01 g 0.01 g 0.1 g 0.1 g 0.01 g 0.01 g 0.01 g 0.01 g 0.1 g 0.1 g
Linearity 0.002 g 0.002 g 0.002 g 0.02 g 0.02 g 0.02 g 0.02 g 0.002 g 0.002 g 0.02 g 0.02 g 0.02 g 0.2 g 0.2 g 0.2 g 0.002 g 0.002 g 0.002 g 0.002 g 0.02 g 0.02 g 0.02 g 0.02 g 0.2 g 0.2 g 0.02 g 0.02 g 0.02 g 0.02 g 0.2 g 0.2 g
Legal For Trade Yes Yes Yes Yes Yes Yes Yes No No No No No No No Yes No No No No No No No No No No No No No No No No
Platform Size 130 mm 130 mm 130 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 130 mm 130 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 130 mm 130 mm 130 mm 130 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm 195 mm x 175 mm
Units ct / g / mg ct / g / mg ct / g / mg ct / g / kg ct / g / kg ct / g / kg ct / g / kg Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t ct / g / kg Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t Bht / ct / Custom / gn / g / Tl1 / msg / mg / mom / N / oz / ozt / dwt / lb / Tl2 / Tl3 / tcl / t

Learn more

Applications

Routine Precision Weighing

Supports research projects involving sample preparation, formulation and analytical measurement procedures.

Sample Preparation & Formulation

Used within quality assurance laboratories to support testing, validation and compliance activities.

Density Determination

Provides accurate measurement performance for higher education laboratories, teaching facilities and research departments.

Features

Colour Touchscreen Operation

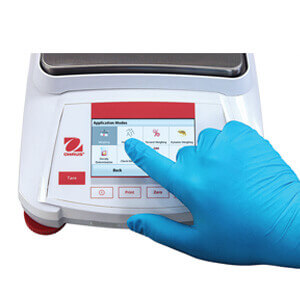

The colour touchscreen and icon-based menus provide intuitive access to weighing, counting, formulation, density and checkweighing functions, with clear guidance for everyday operation.

USB & RS-232 Connectivity

USB Host, USB Device and RS-232 interfaces provide flexible connection to compatible printers, computers and storage devices for routine weighing records and data transfer.

AutoCal & User Management

AutoCal is available on selected models, while configurable user access helps protect settings and maintain consistent operation across shared laboratory environments.

Metal Base & Illuminated Level Indicator

The metal base provides a stable foundation for regular weighing, while the illuminated level indicator helps operators confirm that the balance is correctly positioned before use.
