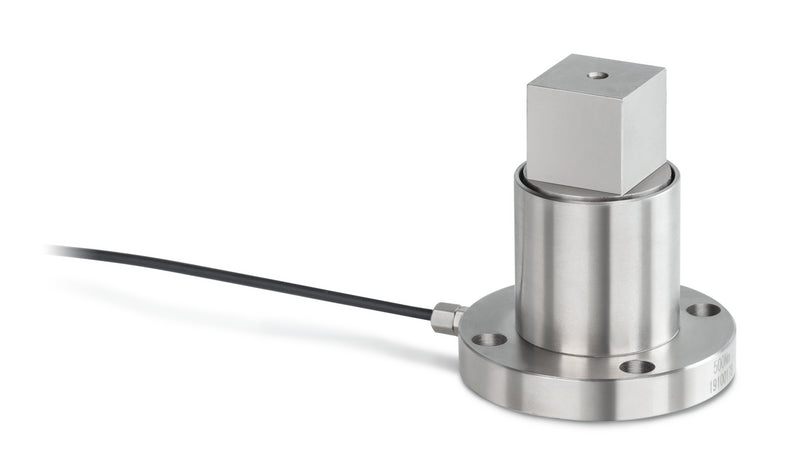

Sauter DC-Y1 Torque Transducers

Sauter DC-Y1 static torque transducers are designed for incorporation into torque test rigs, production fixtures and other measurement systems. The flange-style sensor converts clockwise or anticlockwise torque into an electrical signal for a compatible indicator, amplifier or data-acquisition device.

Models cover nominal capacities from 5 Nm to 500 Nm. Their compact steel construction supports fixed installation where a separate sensor is preferable to a complete bench torque gauge. Electrical characteristics and mechanical dimensions are model-specific, so the selected transducer must be matched to the intended measuring range, compatible electronics and mounting arrangement.

The DC-Y1 can support tool, component and assembly verification when installed as part of a suitable traceable measuring system. It is not a plug-and-measure instrument and should not be described as a complete calibration solution without the necessary indicator, fixtures and calibration evidence.

Model: DC 100-Y1

Calibration Certificate: No

Quantity:

£285.00

Overview

Static flange torque transducers from 5–500 Nm for compatible test rigs, fixtures and measurement systems.

Sauter Sauter DC-Y1 Torque Transducers

£285.00

Learn more

Product specification

Compare model specifications.

Learn more

Applications

Torque Tool Testing

Use within a suitable fixture to verify compatible torque tools.

Component Testing

Measure static torque on assemblies and engineered components.

Production Quality Control

Integrate torque checks into repeat inspection procedures.

Test Rig Development

Build the transducer into a dedicated measurement arrangement.

Features

Wide Capacity Range

Models cover nominal capacities from 5–500 Nm.

Bidirectional Measurement

Suitable for clockwise and anticlockwise static torque.

Separate Sensor Format

Positions the transducer within a purpose-built fixture.

System Integration

Designed for compatible indicators, amplifiers and data equipment.

FAQs

Is the DC-Y1 a complete torque gauge?

No. It requires compatible electronics, mounting and fixtures.

What capacities are available?

The range covers nominal capacities from 5–500 Nm.

Can it be used for calibration?

It can form part of a calibrated system with suitable fixtures, procedures and traceability.

How should I choose a model?

Choose by maximum torque, required resolution, mounting and electronic compatibility.
