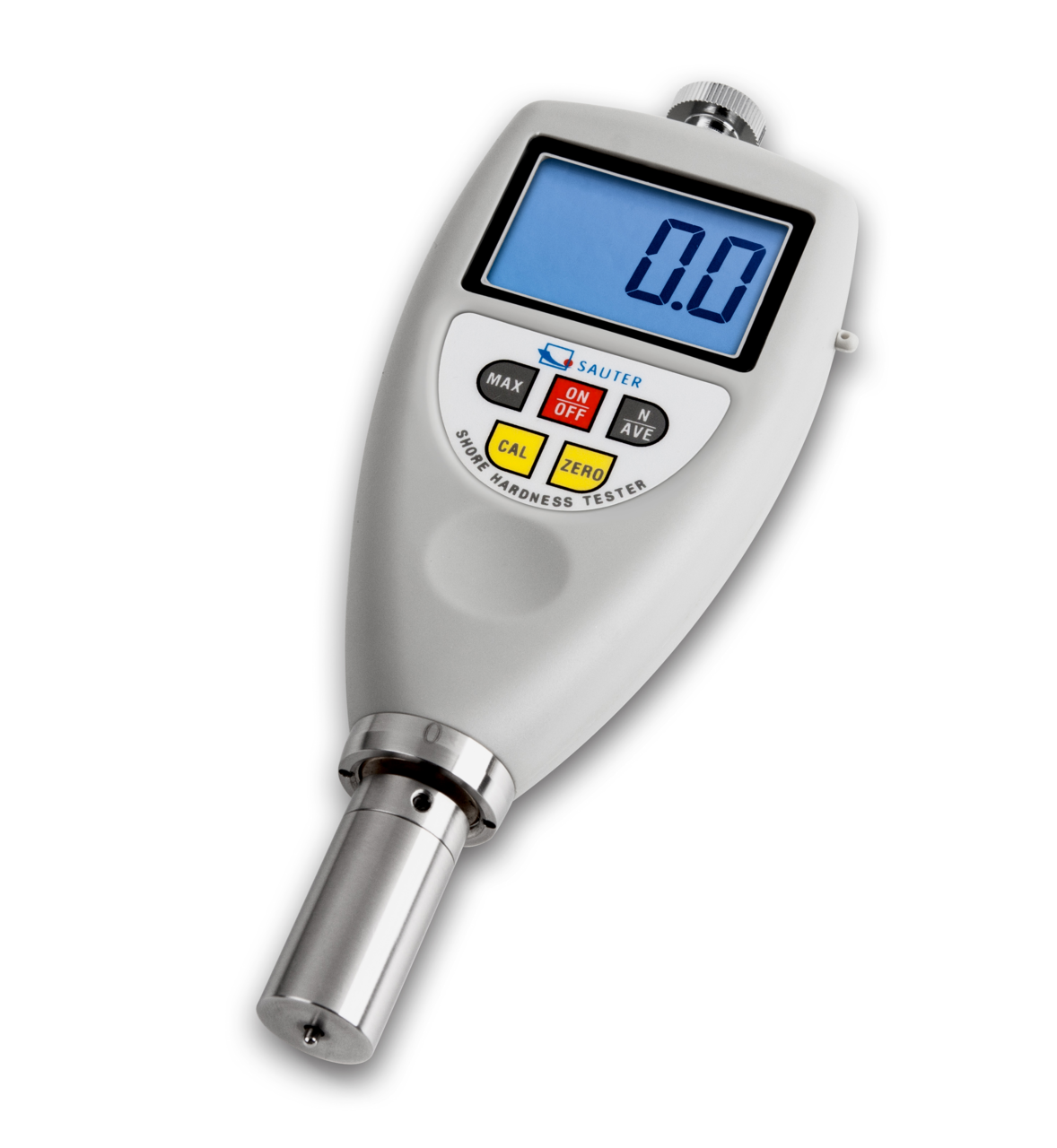

Sauter HDA 100-1 digital Shore A hardness tester

Sauter HD Digital Shore Hardness Tester

The Sauter HD series provides portable digital Shore hardness testers for comparison measurements on rubber and plastics. Choose Shore A for rubber, elastomers and softer plastics, or Shore D for harder plastics and resins.

Available with an optional calibration certificate issued by GNW Instrumentation.

Model: HDA 100-1 — Shore A (rubber & elastomers)

Calibration Certificate: No

The calibration certificate is issued by GNW Instrumentation. What’s included?

Quantity:

£466.20

Tax excluded. Shipping calculated at checkout

Estimated delivery: Approx. 5 working days.

View Technical Data Sheet (PDF)

Sauter Sauter HD Digital Shore Hardness Tester

£466.20

Learn more

Product specification

Compare model specifications.

Model	HDA 100-1	HDD 100-1
Range	0 - 100	0 - 100
Hardness Scale	Shore A	Shore D
Readability	0.1	0.1
Tolerance	1%	1%
Units	HA	HD

Optional Calibration & Certification

Add an optional calibration certificate to document your instrument’s performance before use and support your quality records. Find out below what testing is included and what your certificate provides.

Who issues the certificate?	The calibration certificate is issued by GNW Instrumentation.
What testing is included?	The instrument’s readings are compared with the certified values of suitable hardness test blocks under a controlled applied load.
What does the certificate report?	The certificate records the reference block values, the instrument’s readings and the measurement error at each test point.

Learn more

Applications

Plastics Technology

Used for comparative Shore hardness checks on plastics and similar production materials.

Medical Technology

Suitable for in-house consistency checks where the selected Shore A or Shore D method is relevant.

Automotive Inspection

Supports comparative testing of suitable elastomer, plastic and resin components used in automotive quality control.

Packaging Materials

Helps assess suitable soft or hard plastics used in packaging and food-industry environments.

Features

Shore A and D Models

Choose Shore A for softer rubber, elastomers and plastics, or Shore D for harder plastics, resins and acrylic materials.

Digital Readout

The large backlit display helps users read Shore hardness results clearly in inspection settings.

Practical Operation

Selectable AUTO-OFF or continuous operation supports both battery saving and extended measuring sessions.

Robust Carrying Case

Supplied in a robust case for easier storage, transport and protection between measurement tasks.

FAQs

What materials can the Sauter HD Digital Shore Hardness Tester measure?

Choose HDA 100-1 for Shore A materials such as rubber and elastomers, or HDD 100-1 for harder Shore D plastics and resins.

Is this tester suitable for internal comparison measurements?

Yes, the supplied data particularly recommends it for internal comparison measurement.

Can the Sauter HD be used with a test stand?

Yes. Use HDA 100-1 with the SAUTER TI-ACL test stand and HDD 100-1 with the TI-DL.

Can it be standard calibrated to DIN 48-4?

An optional GNW Instrumentation calibration certificate is available. We compare the tester’s readings with certified hardness test blocks under a controlled applied load and report the reference values, instrument readings and measurement errors. This comparison testing does not certify compliance with DIN ISO 48-4. If your inspection procedure requires calibration to a specific standard, contact us before ordering to confirm suitability.
